LD Systems CURV 500 AVS
Dieser Artikel befindet sich nicht mehr in unserem Sortiment.
Da wir unser umfangreiches Sortiment jedoch stets erweitern, finden Sie bei uns sicher ein aktuelles Produkt, das Ihren Vorstellungen entspricht.
- Ähnliche Artikel
- mehr von LD Systems
- alle Artikel aus der Kategorie Aktive PA Anlagen
Hersteller:
Artikelnummer:
246820
Versandgewicht:
24,60 kg
Versand per:
Paket
Einheit:
Stück
Mit Freunden teilen:
LD Systems CURV 500 AVS Produktdetails
Features:
- Kabel im Lieferumfang enthalten
- Leistung (RMS): 380 W
- Anzahl Array Satelliten: 2
- Number of Smartlink® Adapters: 2
- Number of Subwoofers: 1
- Max. SPL (continuous): 116 dB
- Max. SPL (peak): 122 dB
- Subwoofer: 10" Bassreflex
- Satellite: Mittentöner: 1 x 4" / Hochtöner: 3 x 1" mit WaveAhead® Technology / 16 ohms
- Frequenzbereich: 47 Hz - 20 kHz
- Abstahlverhalten (H x V): 110° horizontal, 15° vertikal pro Satellit
- Endstufe: Class D
- Leistung: (RMS/Peak): Subwoofer: 300 W / 1200 W
- Array Satelliten: 2 x 160 W / 2 x 640 W
- Subwoofer: 300 W / 1200 W,
- Protection: DSP based multiband-limiter, Short Circuit, Overheating, Over-current
- Subwoofer Features: 4 channel mixer, Bluetooth®, 16 DFX Presets, 4 System DSP Presets, threaded M20 flange, 3 ergonomic handels

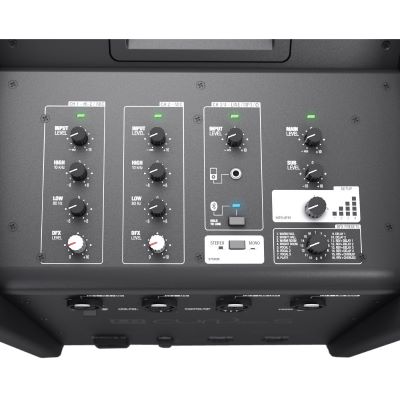

- Subwoofer Steuerung: Input Level (Ch1-4), Hi-Z, Hi/Low EQ (Ch1-2), DFX (Ch1-2), DFX Presets, DSP Presets, Blutetooth Link, Mono/Stereo, Sub Level, Main Level
- Subwoofer Anzeigen: Signal, Limit, Bluetooth®, Power
- Subwoofer Anschlüsse: 1x Mic/Hi-Z (XLR/6,3mm Klinke Combo), 1x Mic (XLR/6,3mm Klinke Combo), 2x Line (XLR/6,3mm Klinke Combo), 3,5mm Jack, 2 x Array Satellite Out (Speakon
- compatible), Line Out (XLR), System Out (5-pin XLR)
- Subwoofer Material: Sperrholz
- Array Satellit Features: WaveAhead® Technology, interner Crossover, Metalgrill
- Array Satellit Material: Aluminium
- Smartlink® Adapter Features: dual 16 mm flange, 2x M6 thread for optional wall mount
- Smartlink® Adapter Anschlüsse: 1x Speakon, 1x Phoenix
- Smartlink® Adapter Material: Aluminium
- Subwoofer Dimensions (B x H x T): 325 x 383 x 491 mm
- Array Satellite Dimensions (B x H x T): 122 x 122 x 122 mm
- Smartlink® Adapter Dimensions (B x H x T): 122 x 57 x 122 mm
- Subwoofer Gewicht: 16,5 kg
- Array Satellit Gewicht: 1,7 kg
- Smartlink® Adapter Gewicht: 0,6 kg
- Distanzstange optional erhältlich - Artikel 249489
Spezifikationen:
- Leistung: 380 W
- Gehäusematerial: Kunststoff
- Hochständerflansch: Nein
- Bestückung Tieftöner: 1 x 10 Zoll
- Bestückung Hochtöner: 1 x 1 Zoll
- Im Set: Nein
- Bluetooth: Ja
- Typ: PA Anlage
- Thema: PA und Beschallung
